- Acrovyn & Acrovyn PVC-Free

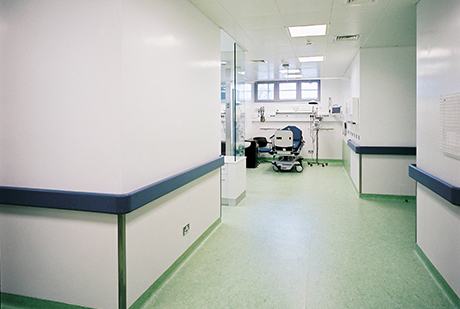

140mm high hand/crash rail in a classic, flat profile, offering severe duty impact protection and mobility support in circulation routes.
- Severe Duty
- Quick Lock
- Comfortable grip handrail top
- Free-floating cover flexes on impact, neutralising its force
- Continuous shock-absorbing cushion for increased impact protection
- Quick Lock brackets for fast installation and easy maintenance
- Infill strip closes off retainer channel for ease of cleaning
- Anti-ligature option featuring continuous, powder coated aluminium bracket
- Solid Colours
Acrovyn (27) | Acrovyn PVC-Free (15)
Mogućnosti ugradnje
- Acrovyn
HRB-4C – QUICK LOCK
HRB-4CAL – ANTI-LIGATURE - Acrovyn PVC-Free
HRB-4CN – QUICK LOCK
HRB-4CALN – ANTI-LIGATURE
QUICK LOCK
ANTI-LIGATURE
CS’ sturdy and efficient fixing system makes the installation of Acrovyn Hand/Crash Rails a simple, clean process.
How does it work?
The unique cam lock on the bracket simply slots into the back of the retainer, and the profile is locked or unlocked with the twist of a spanner. This allows faster installation, but also enables fast removal for maintenance, without compromising the integrity of the wall fixings.
Benefits:
- No more drilling holes in the retainer
- No more struggling with component alignment
- Ease of bracket location and attachment
- Allows for pre-assembly of retainer, cover and end caps off-site
- Allows for easy maintenance
- Offers long term savings
Colours & Finishes
- Solid Colours
Acrovyn (27) | Acrovyn PVC-Free (15)
* Zbog ograničenja ispisa i zaslona računala, stvarne boje mogu se razlikovati. Preporučujemo da odaberete boju iz naše besplatne palete uzoraka .
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
* Zbog ograničenja ispisa i zaslona računala, stvarne boje mogu se razlikovati. Preporučujemo da odaberete boju iz naše besplatne palete uzoraka .
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Stock Lengths & Fixings
- Acrovyn: 4.0m
Acrovyn PVC-Free: 3.0m - Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended
Pribor
- End caps
- External corners
- Quick Lock brackets (standard)
- Anti-ligature brackets (optional)
- Vertical accent trims (optional) – Black
- Removable kit for service ducts
